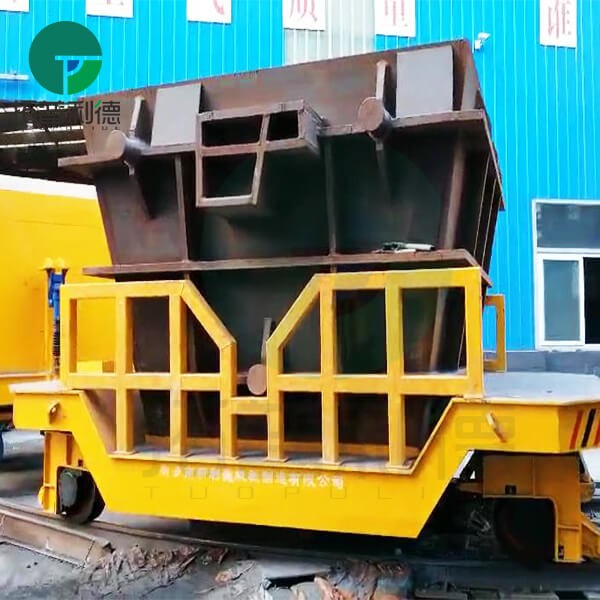

60T Diesel Engine Tow Tractor Ladle Transfer Trolley

Product Brief

Application: 2 sets 60t diesel engine tow tractor ladle transfer trolley was delivered to Xuzhou User’ factory, the ladle transfer trolley was used in transferring from bay to bay, from indoor to outdoor to indoor. One transfer trolley is electric type, powered by diesel, The main function is pulling and towing. The other is no powered type, it is mainly responsible for transferring the 60t steel ladles.

Product Parameters:

The ladle transfer trolley was customized as per the working site with 8000mm turning radius, which is a non standard transfer trolley.

Considering ladle handling, Firstly, the trolley body must be resistant to high temperature, and the motor and electrical appliances must be treated with high temperature and explosion-proof treatment.

There are generally two motors in the ladle transfer trolley. When one cannot run, the other will continue to rotate to make the transfer trolley move to avoid solidification of the ladle.

Features:

1. Customized capacity

2. Customized Table Size

3. Customized Power Supply

4. Customized Function and trolley structure, such as tilting, lifting, weighing system, etc.

5. Anti- high temperature

6. Due motor driven

7. Rail clamp assist to prevent rollover

8. Use remote control to realize remote control and ensure the safety of personnel.

Product Information:

Model: KPF+KP

Capacity: 60T

Power: Diesel Power + No Power

Table Size: 5300*3400*1000mm(KP) + 3400*3000*1000mm(KPF)

Turning Radius: 8000mm

Running Speed: 0-50m/min

Control: Remote Control

Certification: CE, SGS, ISO9001
