Workshop Long Distance Transport Railway Transfer Cart

Product Brief

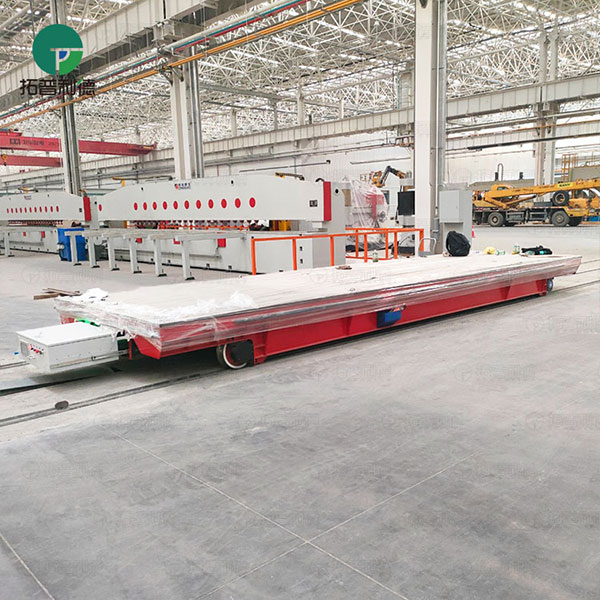

This heavy-duty cable reel powered rail transfer cart is specifically designed for the handling of materials and components in production workshops. Its operating range is unrestricted within 200 meters. The frame is mainly made of cast steel, boasting excellent high-temperature resistance. The large tabletop has dimensions of approximately 3000*1500*500 mm. It is equipped with a flat tabletop, a box girder type frame, and a four-wheel structure, ensuring strong load-bearing capacity. Special accessories include cast steel wheels, wireless remote control, a three-color warning light, an emergency stop button, a lifting eye on the left side of the cart, as well as a cable reel, supporting wire columns, and a cable arranging device.

The transfer cart is powered by a cable reel. The wireless remote control allows for flexible operation of the cart, enabling actions such as forward movement, backward movement, and steering. When the transfer cart is in operation, the cable arranging device precisely controls the retraction and release of the cable, ensuring a stable power supply and enabling the cart to move freely within a range of 200 meters. Meanwhile, the cart is equipped with a three-color warning light and an emergency stop button, providing multiple layers of safety protection to ensure the safety of operators and equipment.

Advantages of the structure and accessories:
Flat tabletop design: The large-sized tabletop (3000mm×1500mm×500mm) is suitable for carrying large materials and heavy-duty components, meeting various handling requirements.
Box girder type frame: Made of cast steel, it has a sturdy structure and excellent high-temperature resistance, making it suitable for high-temperature industrial environments.
Four-wheel drive: Equipped with cast steel wheels, which are wear-resistant and compression-resistant, ensuring the stable operation of the vehicle on complex ground surfaces.
Wireless remote control: It offers flexible operation, supporting long-distance and precise control, thus improving work efficiency.
Three-color audible and visual alarm light: It emits audible and visual warnings in case of emergencies, ensuring operational safety.
Emergency stop button: The cart is equipped with an emergency braking function, which can respond quickly to unexpected situations.
Lifting eye design: A lifting eye is reserved on the left side of the transfer cart, which can be compatible with various transportation types, enhancing the flexibility of equipment use.
Cable reel and cable arranging device: Automatically retracts and releases the cable, preventing the cable from getting knotted and ensuring a stable power supply.

In the production workshop of an automobile manufacturing plant, this equipment is used to handle large molds and cart components. Through wireless remote control operation, workers can easily complete the transfer of a 3000-kilogram mold from the storage area to the assembly line, with uninterrupted operation over a distance of 200 meters. There is no need for repeated power connections, which greatly improves the handling efficiency. The combined design of the three-color warning light and the emergency stop button ensures operational safety; and the large tabletop design can meet the load-bearing requirements of molds of various sizes.

This heavy-duty cable reel powered rail transfer cart, with its characteristics of high efficiency, stability, and safety, provides an intelligent solution for heavy-duty handling in production workshops. It can be widely applied to the material transportation needs of industries such as automobile manufacturing, mechanical processing, and electronic production.

Product Information:

• Model: KPJ-15T
• Load: 15 Tons
• Size: 3000*1500*500mm
• Wheel Type:Cast Steel Wheel
• Power Supply: Cable Drum Power
• Motor: AC Motor
• Features: Anti-high Temperature
