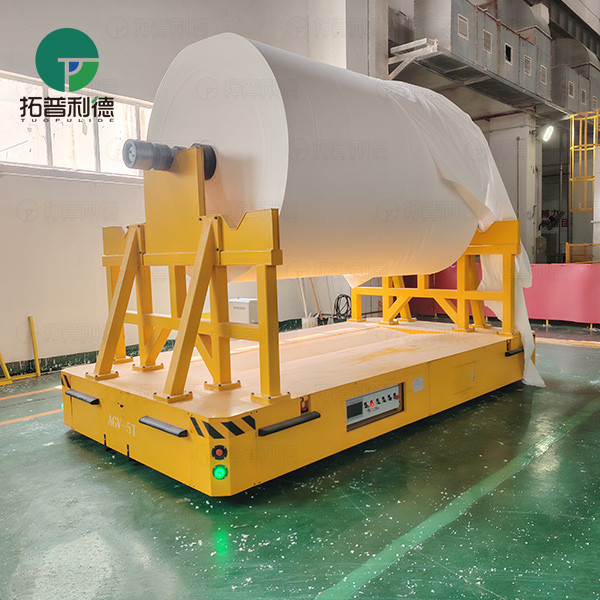

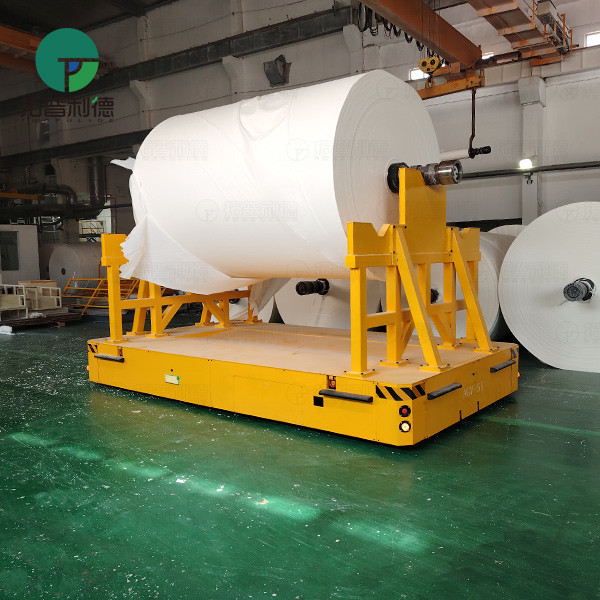

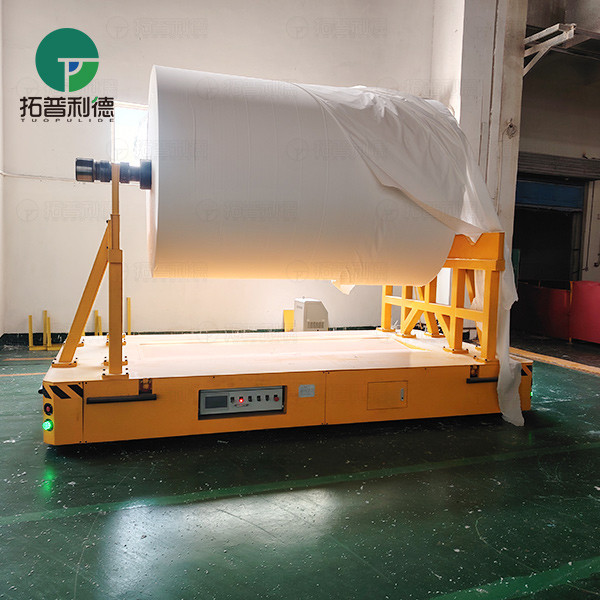

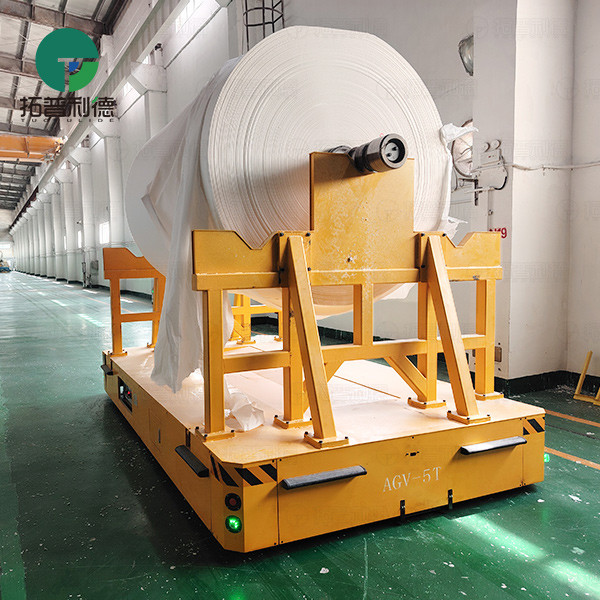

5 Tons Automatic Charging AGV with Movable Bracket for Material Handling

Product Brief

This 5 tons trackless automatic charging AGV is an intelligent material handling device specifically designed for modern manufacturing workshops. Powered by a high capacity lithium battery and driven by omnidirectional Mecanum wheels, it completely eliminates the limitations of traditional tracks and operating distances.

Components and Advantages

This automatic charging AGV adopts a modular intelligent configuration, and each core component can be fine-tuned according to actual working conditions:

• Omnidirectional Drive System: This trackless automatic charging AGV uses Mecanum wheels, giving the equipment the ability to move laterally, diagonally, and rotate 360° on the spot, maintaining flexibility even under heavy loads.
• Continuous Power Combination: A high capacity lithium battery provides strong power, and with the help of intelligent charging piles, automatic recharging ensures 24 hours uninterrupted operation.
• Intelligent Interaction Window: The AGV is equipped with an LED screen and a power display screen, providing a clear digital display of operating status and remaining power, facilitating workshop scheduling management.
• Multi-dimensional Safety Protection: Magnetic strip navigation ensures precise tracking; edge-contact sensors combined with audible and visual warnings guarantee absolute safety in human-machine coexistence environments.

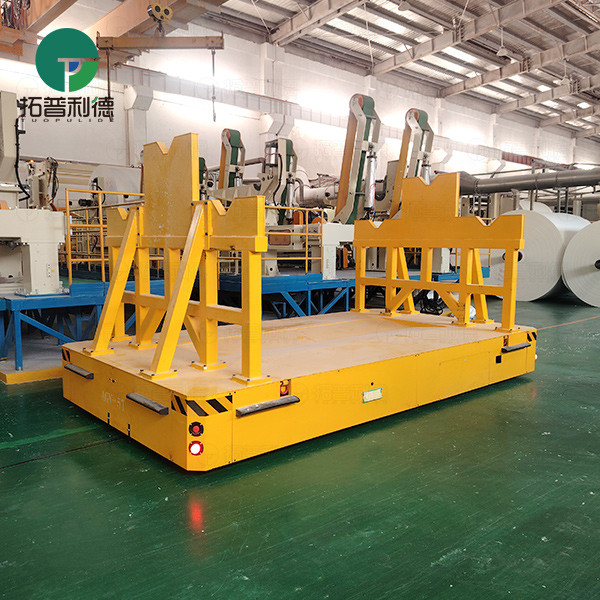

• Customized Vehicle Body: A robust cast steel chassis provides stable load-bearing capacity; customized detachable brackets conform to the workpiece's curvature, facilitating loading and unloading and preventing slippage during transport.

Trackless automatic charging AGVs are used in industrial environments such as manufacturing workshops and warehousing centers, and are particularly adept at automated cross-station transfer of heavy coils such as steel coils, paper coils, and cable coils. Customized detachable brackets conform to the workpiece during transport, effectively preventing rolling and slippage, and improving workshop logistics efficiency.

Product Information:

• Model: AGV
• QTY: 1 set
• Capacity: 5 Ton
• Power: Lithium Battery powered
• Table Size: 4500x2400x550mm
• Running Speed: 0-30m/min
