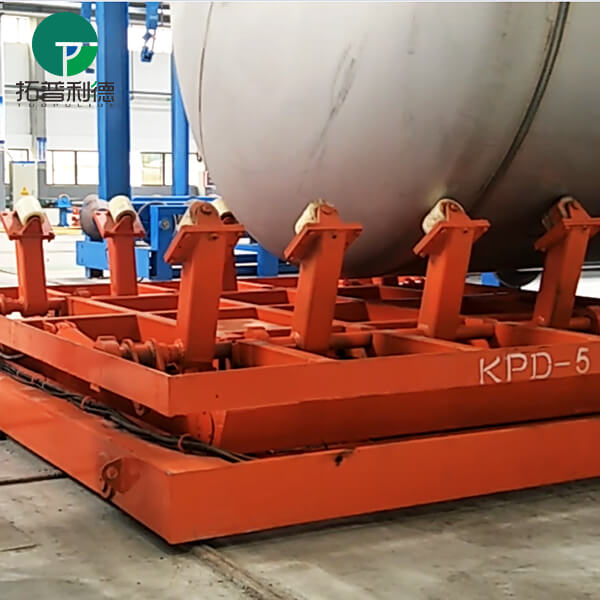

Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting
Roller Transfer Cart With Hydraulic Lifting

Roller Transfer Cart With Hydraulic Lifting

Product Information:

Model: KPD-5T

Load: 5 Tons

Color: Red

Size: 2600*2440*450mm

Wheel Type: Cast Rail Wheel

Power Supply: Low voltage Rail

Working Speed: 0-30mmin

Feature: With Roller Bracket And Hydraulic Lifting System

Application: Cylinder Workpiece Transport

Product Brief

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

Structure:
The hydraulic lifting roller transfer cart is a high-efficiency material handling equipment integrating a hydraulic lifting system and a roller conveying chain. The equipment is mainly composed of components such as a roller conveying chain, hydraulic lifting platform, control system, and driving device.

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

Working Principle:
Materials are first transported to the designated position through the roller conveying chain. When the materials reach the predetermined position, the roller conveying chain stops working, and the hydraulic lifting platform rises immediately, enabling the roller to continue conveying materials upward to a higher position.
When the materials are transported to one end and docked with another conveying chain, the hydraulic lifting system raises the materials to a certain height, and then the conveying vehicle moves the materials to other specified positions.

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

Advantages:
The structural advantage of this rail transfer cart lies in its highly modular design, enabling it to flexibly adapt to material handling requirements of different heights and lengths.
The hydraulic lifting system ensures stable and precise material lifting, reducing the risk of material damage during handling.
The use of a roller conveying chain improves material conveying efficiency while reducing energy consumption.

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

Application:
This transfer cart is suitable for scenarios such as logistics warehousing and mechanical processing.
For example, in automobile parts production lines, it can convey stamped workpieces to designated workstations through the roller chain, and the hydraulic system lifts the workpieces to dock with the elevated conveying line.

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

In the warehouse sorting link, it can lift stacked materials layer by layer to the conveyor belt, realizing automated sorting and transfer, effectively reducing manual handling losses and improving production line integration efficiency.
The rail transfer cart is controlled by remoter and can interlock with the automatic control system to meet the intelligent production needs of multiple scenarios.

electric rail transfer cart,transfer cart manufacturer,customized transfer trolley

Product Information:

Model: KPD-5T

Load: 5 Tons

Color: Red

Size: 2600*2440*450mm

Wheel Type: Cast Rail Wheel

Power Supply: Low voltage Rail

Working Speed: 0-30mmin

Feature: With Roller Bracket And Hydraulic Lifting System

Application: Cylinder Workpiece Transport
