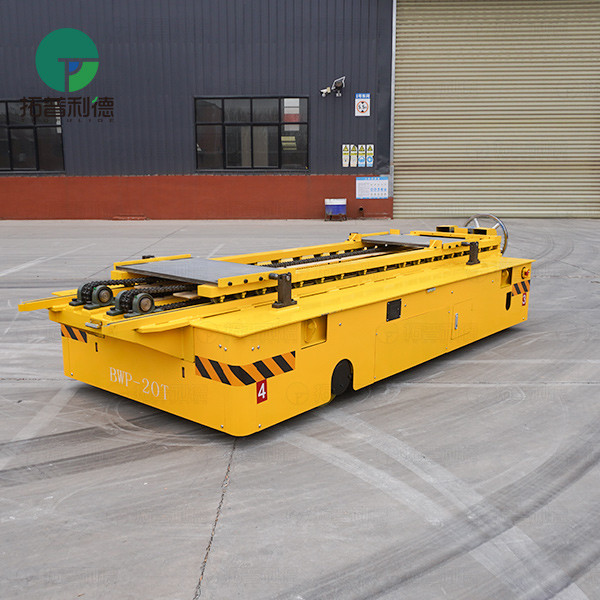

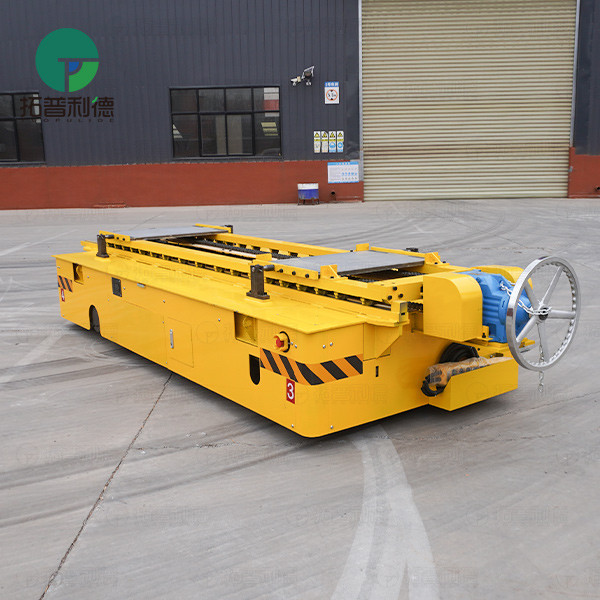

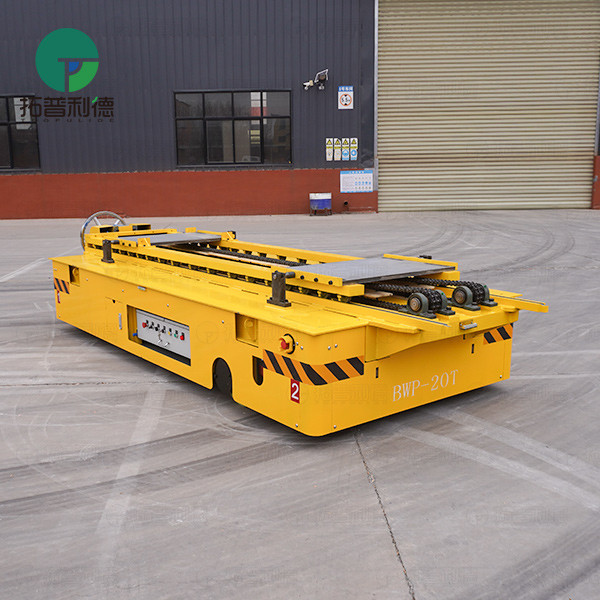

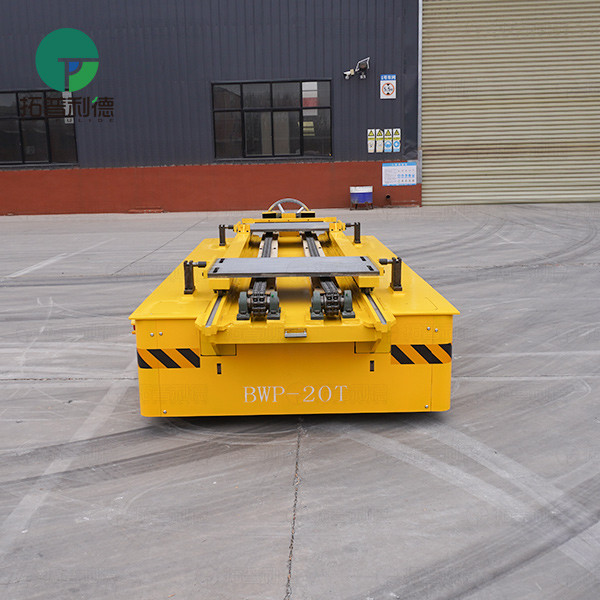

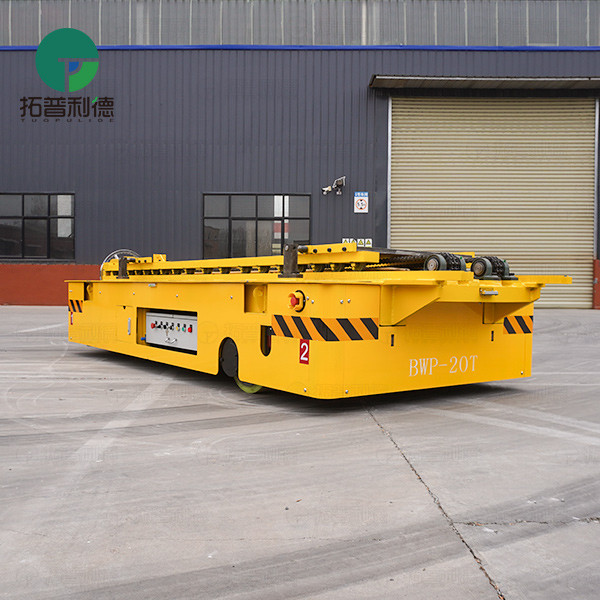

Roller Conveyor Battery Trackless Transfer Cart with Hydraulic Support

Product Brief

This 20 tons battery powered trackless transfer cart is specifically designed for use in rolling mill production lines and supply chain management scenarios. Cart measures 4500x1600x600mm, has a rated load capacity of 20 tons, and an adjustable operating speed of 0-20m/min.Driven by high-energy batteries, it requires no tracks and can move freely within the factory area. Utilizing an integrated roller conveyor system and hydraulic lifting mechanism on its customized platform, it achieves precise, automatic, and efficient docking with rolling mills and conveyor lines.

Structure and Accessories

• Customized Platform and Roller Conveyor System: The platform serves as the core working platform and is equipped with a roller conveyor system compatible with the rolling mill. Equipped with a manual screw-adjustment mechanism, the lateral and longitudinal alignment accuracy of the platform and roller conveyor with the fixed roller track can be precisely adjusted, with errors controlled to the millimeter level. This ensures smooth and safe material transfer, avoiding impact and damage.
• Hydraulic Lifting System: Hydraulic outriggers are installed at the four corners of the frame. The lifting function adjusts the platform height to accommodate roller conveyors or equipment interfaces of different heights, allowing the cart to flexibly connect to roller mills and conveyor lines of different specifications, significantly improving compatibility.
• Intelligent Control System: The battery trackless transfer cart equipped with dual-mode operation of wireless remote control and wired handle, facilitating operation by on-site personnel at different distances and in different environments. The battery status display shows the battery status in real time, while audible and visual warning lights and an emergency stop button provide multiple layers of safety protection.
• Polyurethane Wheels: Made of high quality polyurethane, these wheels offer excellent wear resistance, smooth operation, and do not damage the epoxy flooring in the workshop. They also provide some shock absorption and noise reduction.

Product Advantages

• Trackless and Flexible: Battery powered and trackless, this system is not limited by cable length or fixed tracks, allowing direct access to any workstation in the workshop, significantly improving the efficiency and flexibility of material transfer.
• Seamless Collaboration: A combination of a tabletop roller conveyor system, manual screw fine-tuning, and hydraulic lifting enables high-precision interlocking with production line roller conveyors and rolling mill interfaces. This ensures smooth and stable material exchange, effectively improving the overall cycle time of the production line.
• Automatic Loading and Unloading: After docking, materials can be automatically loaded and unloaded via the linkage between the tabletop roller conveyor and the production line roller conveyor. This significantly reduces the high-intensity manual pushing and pulling of materials, improving operational safety.

Applications
This battery trackless transfer cart is primarily used in metal rolling workshops as a supporting transfer device for rolling production lines.
The transfer cart precisely delivers raw materials into the rolling mill or transfers the rolled finished workpieces to the next process.
The table roll mill can be directly connected to the production line conveyor system to realize automatic material flow without manual handling, which greatly reduces the labor intensity of workers and avoids problems such as material collisions and precision deviations during manual handling.

Product Information:

• Model: BWP
• QTY: 1 set
• Capacity: 20 Ton
• Power: Battery Powered
• Table Size: 4500x1600x600mm
• Fuction Accessories: Roller Conveyor,Hydraulic Outriggers
• Running Speed: 0-20m/min
