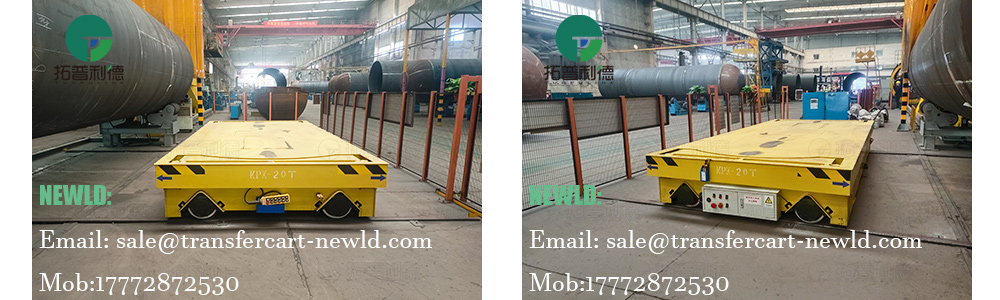

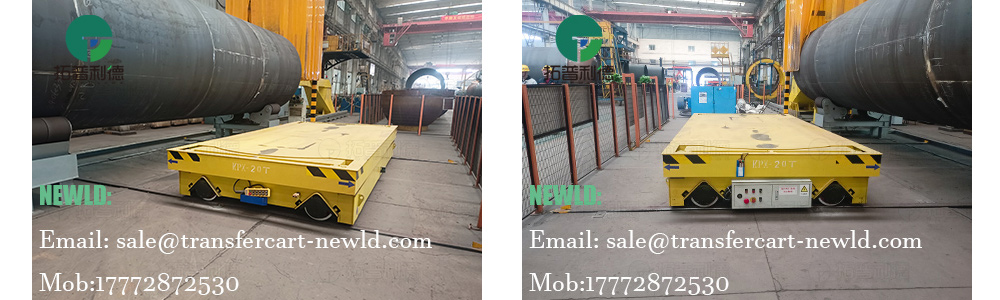

20 Tons Electric Rail Transfer Cart with Hydraulic Lifting for Mold Handling

Usage Dilemma:
A large-scale mold manufacturing enterprise is facing difficulties in handling circular molds in its production workshop. Traditional handling equipment is not only inefficient but also significantly restricted by distance due to the complex workshop environment, failing to meet production needs.

Solution:

Customized 20 tons battery powered rail  transfer cart, with four core breakthroughs to precisely meet the requirements:

• Long Distance Transport + High temperature resistance: Battery power supply eliminates the distance limitation of cable power supply, enabling continuous and stable operation in 40℃ environment.

Intelligent loading and unloading:

• Hydraulic lifting device (concave arc shape): Synchronous lifting at both ends, realizing automatic loading and unloading of molds by utilizing space difference, with loading and unloading time shortened to 3 minutes per time;
• Laser dead man stop + acousto-optic alarm, which can immediately brake when someone accidentally enters the operation area, reducing the possibility of material damage and personnel injury.

• Heavy load without worry: Box girder frame + cast steel wheels, ensuring stable operation under 20 tons load and zero deformation of molds.
• Dual-control flexibility: Wireless remote control (within 30 meters) and wired handle can be freely switched to adapt to complex movement lines.

Application:
For similar scenarios such as wind power hub and aerospace metal forging handling,the rail transfer cart can be reused only by adjusting the table arc and load parameters.
