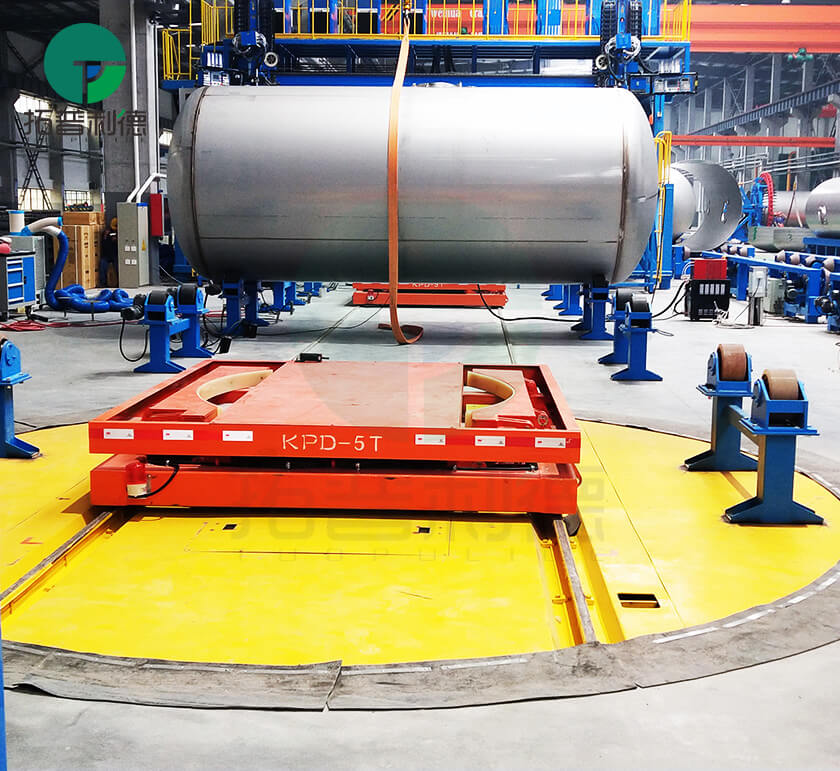

Rail Transfer Cart With Scissor Lift

This kind of rail transfer cart system with scissor lift is widely applied to transport cylindrical work-piece to the parallel working position on the cross track. The rail transfer car system has the following functions:

Lifting Function: The powered transfer cart lifts work-piece in the initial position, move it to the working station, then the cart leaves after unloading work-piece.

Vertical and Horizontal Movement Function: This kind of rail transfer cart is suitable for the condition of carrying and lifting work-piece on the cross track.

The gap between wheel and track is designed as small as possible, and the rim is treated through bevel process in order to minimize the error in the process of running. The proximity switch and the guide pillar is utilized to achieve more accurate positioning. The four hydraulic cylinders are applied to ensure the precise change of different rails on the cross track and guarantee the verticality of the track laying.
