Rail Transfer Cart and Turntable System

Feature Introduction:

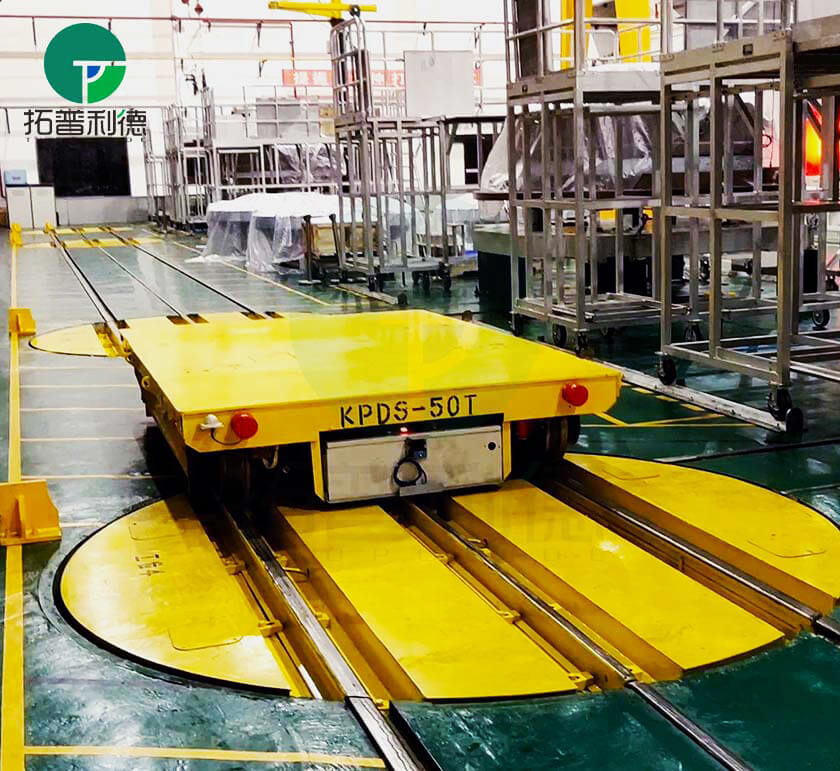

This kinds rail transfer cart and turntable system is used to move the heavy work-piece to the vertical or parallel working stations. This type of rail transfer cart has the following features:

Turning Via Turntable: The electric rail transfer cart can achieve the precise turning through the turntable. After completed the turn, this vehicle continues to operation.

Low Voltage Rail Powered: Because the running route is complex, the cable power and the battery power are both not convenient. However, the low voltage rail powered can ensure the long-time operation of the transfer cart and greatly improve the production efficiency.

Challenge and Solution:

1) How to connect the different rails precisely by the turntable

Solution: The turntable is equipped with the proximity switch. There is a positioning point on the base of the turntable. By this positioning point, the transfer cart can adjust the speed and stop automatically. The proximity switch and the positioning point are used to rotate the turntable 90 and 180 degree to accurately connect different-direction rails.

2) How to guarantee the safety of the low voltage rail power?

Solution: The low voltage rail powered refers to the 36V voltage that is quite safe. Transfer the AC 380V power to the AC 36V three-phase by the step-down transformer, then connect the AC 36V three-phase to the three tracks respectively. The wheels and the pick power mechanism conduct the AC 36V power to the step-up transformer, then the AC 36v is transformed to AC 380V through the transformer.
