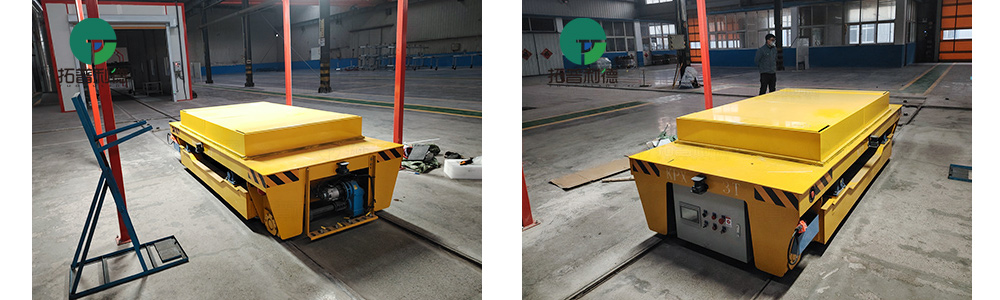

Customized 3 Tons Frame Handling Lifting Rail Transfer Cart

Usage Challenges
In the process of modern industrial automation, achieving precise docking and autonomous loading/unloading of heavy workpieces between different workstations has always been a bottleneck for enterprises to improve production efficiency. To solve this problem, we have launched this lifting rail transfer cart.

Solution
Based on the customer's usage needs and actual application scenarios, we designed this 3 tons rail transfer cart integrating a hydraulic lifting platform and a dual-wheel system.
Power System: Powered by a high capacity battery, paired with a portable charger, enabling operation without distance limitations.
Structural Design: The core adopts a box-girder frame, ensuring stable load-bearing capacity; the customized lifting platform can automatically adjust according to the height of the docking equipment, achieving autonomous loading and unloading.
Intelligent Components: The rail transfer cart equipped with a laser sensor and audible and visual alarms, along with an LED display screen to monitor the operating status in real time, ensuring a safe human-machine coexistence environment.

Advantages
Easy Operation: Dual control modes,wired handle and wireless remote control,allow for quick mastery even for complex operations.
High Durability: Equipped with cast steel wheels, wear-resistant and with strong load-bearing capacity.

Application
In the chassis transfer process, the rail transfer cart receives instructions and smoothly travels to the bottom of the assembly table. A hydraulic system lifts the 3 tons chassis as a whole, and a dual-wheel system (longitudinal and transverse) completes precise workstation switching. With the aid of laser sensors, emergency stop buttons, and other safety devices, it safely arrives at the unloading area and continues continuous reciprocating motion.
